Low /Mid Pressure Triplex Consolidation Test Apparatus
Original price was: ৳ 170,000.৳ 165,000Current price is: ৳ 165,000.

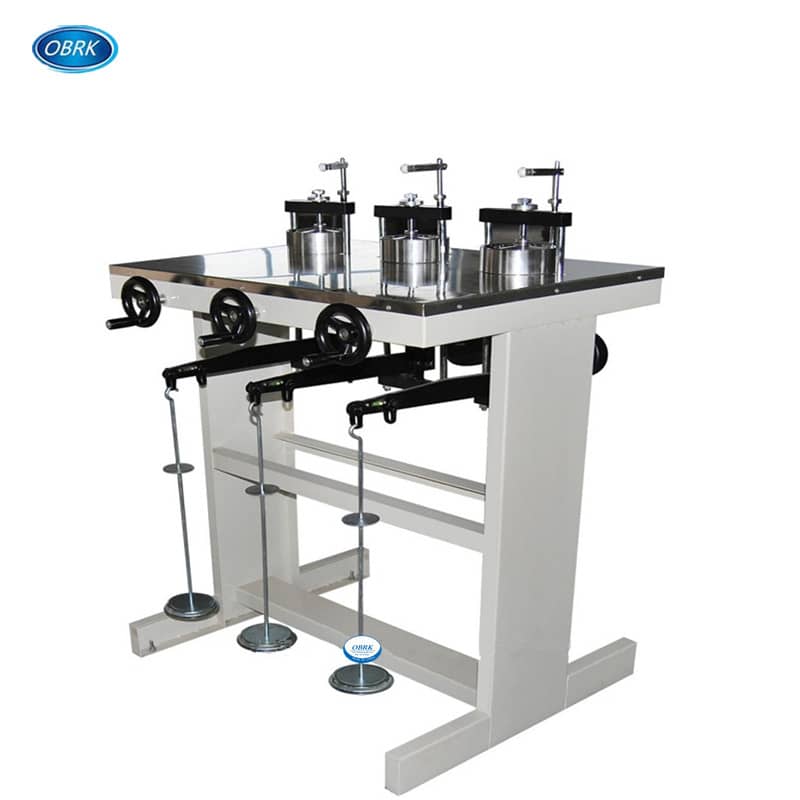

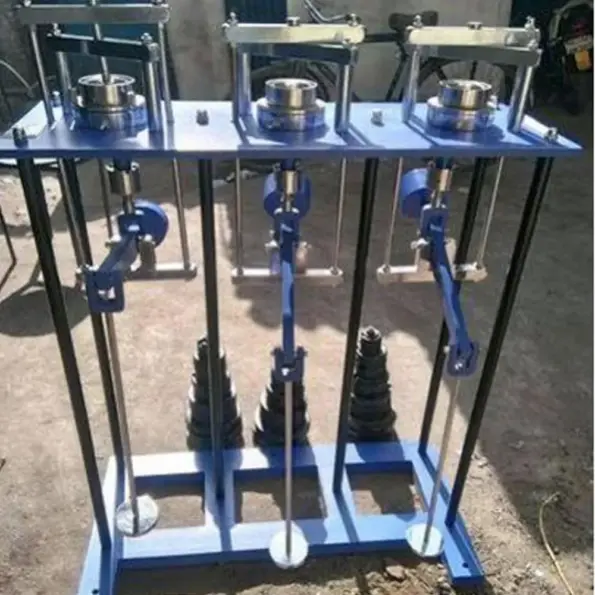

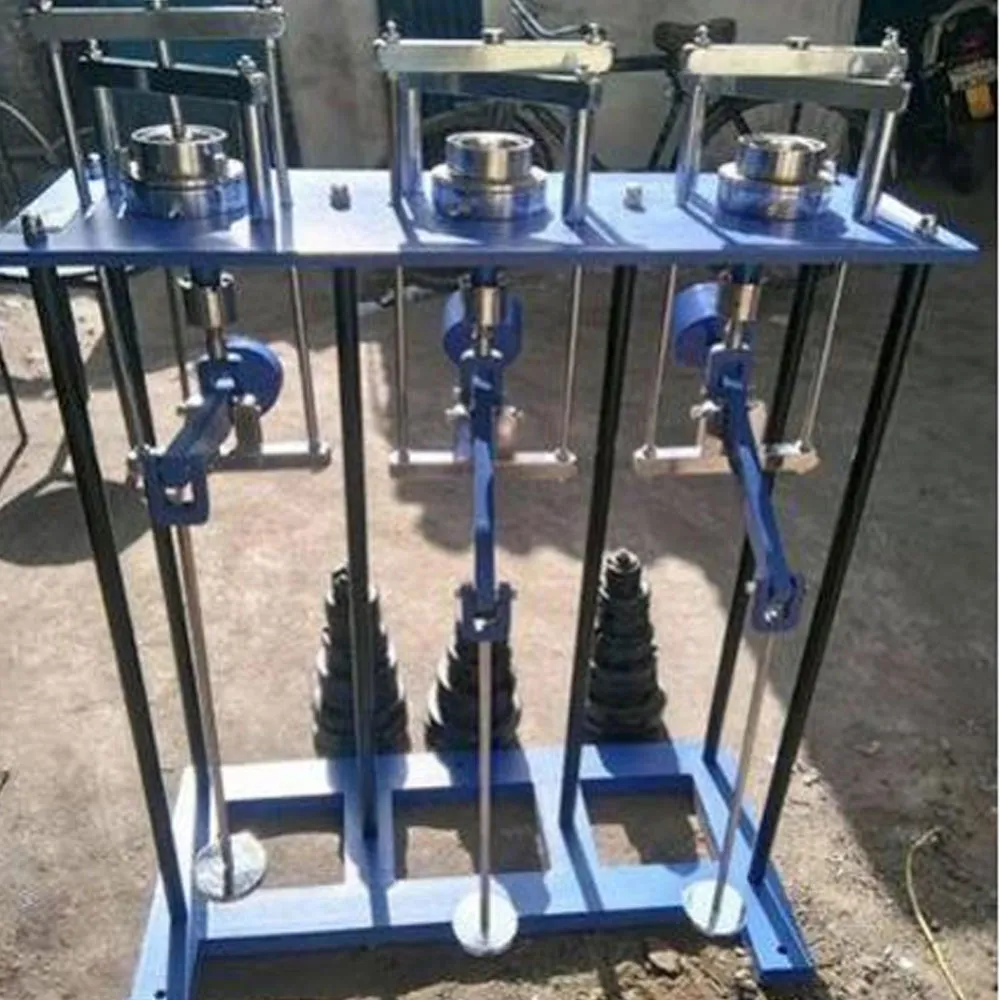

Low /Mid Pressure Triplex Consolidation Test Apparatus
- Weight: 32 Kg
- Head: three Head
- Manufacturing Country: Bangladesh
- Country of origin: China
Triplex Consolidation Test Apparatus best price in Bangladesh

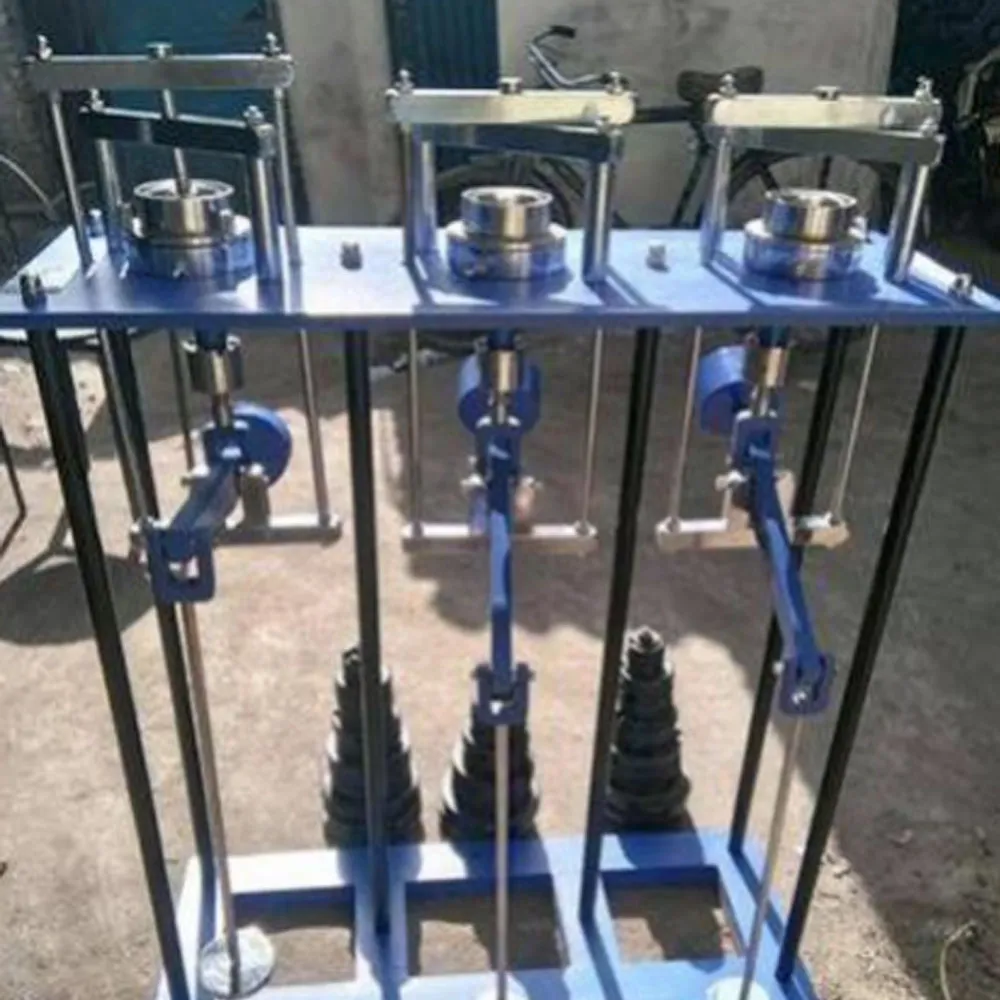

RTCDHAKA To guarantee minimum frame distortion, the has been solidly constructed. The frame is designed to load the specimen through a lever arm assembly and one of three alternative beam ratios as 9:1, 10:1 and 11:1. The beam is fitted with a counterbalance weight and beam support jack. The cell platform is compatible with the full range of RTCDHAKA consolidation cells and is fitted with a central spigot to ensure accurate centering of the cell under the loading.
The RTCDHAKA fixed ring consolidation cells are constructed from corrosion-resistant materials and conform to the requirements of the relevant standards. An integral water reservoir is incorporated in the cell which allows the specimen to be inundated when required. Upper and lower porous discs, a pressure pad and a cutting (specimen) ring are all supplied with the cells.
Test method of Triplex Consolidation Test Apparatus best price in Bangladesh
Tests are performed on specimens prepared from undisturbed samples or compacted disturbed samples. The user is able to estimate the behaviour of foundations under load with the data collected from these tests. Classification data and a knowledge of the soils loading history are also important in making these estimates.
- Undisturbed samples should be trimmed directly in the consolidation cell using the built in cutting edge and then further trimmed flush with top and bottom ends.
- Mass of the cell and soil is measured, and the wet mass of the specimen calculated by subtracting the known ring mass.
- Pre dampened porous plates are placed on either side of the cell.
- Cell is placed in loading Oedometer, and a seating pressure is applied.
- Pressure is doubled and changes in thickness are recorded periodically, this is repeated up to the maximum desired load
- Loading is continued until the thickness vs Log Time plot stabilises as described in AS1289.6.6.1 or to a time suitable to the sample and testing requirements.
- The specimen is then unloaded and the change in thickness recorded.
- Final mass is recorded, and the specimen cut for examination.
- The sample is then oven dried to obtain the dry mass as per AS1289.2.1.1
Specifications Cell Model and typical loads applied.
| Cell Model No. | UTS-0307 | UTS-0309 | UTS-0313 |
| Specimen Diameter | 50 mm | 63.5 mm | 75 mm |
| Specimen Area | 1963 mm² | 3165.2 mm² | 4416 mm² |
| Beam Ratio | 10:1 | 11:1 | 9:1 |
| Total Load | 64 kg | 64 kg | 80 kg |
| Stress | 32 kg/cm² | 19.53 kg/cm² | 16.3 kg/cm² |
| Stress for 1kg | 0.5 kg/cm² | 0.34 kg/cm² | 0.2 kg/cm² |
Weight Sets
| Product | Sets of Weights for Consolidation | |
| UTS-0368 | 16 kg Set | (2) 5 kg, (1) 2 kg, (2) 1 kg, (3) 0.5 kg (2) 0.25 kg |
| UTS-0370 | 32 kg Set | (1) 10 kg, (3) 5 kg, (2) 2 kg, (1) 1 kg, (3) 0.5 kg, (2) 0.25 kg |
| UTS-0372 | 50 kg Set | (3) 10 kg, (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0.5 kg, (2) 0.25 kg |
| UTS-0374 | 64 kg Set | (4) 10 kg, (3) 5 kg, (2) 2 kg, (3) 1 kg, (3) 0.5 kg, (2) 0.25 kg |
| UTS-0648 | 80 kg Set | (6) 10 kg, (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0.5 kg, (2) 0.25 kg |
