        🧱 Concrete Confined Flow Ability – L-Shape Box Test Apparatus

        Model: RTC-LBOX-01
        Brand: RTC Dhaka


        🧪 Product Overview

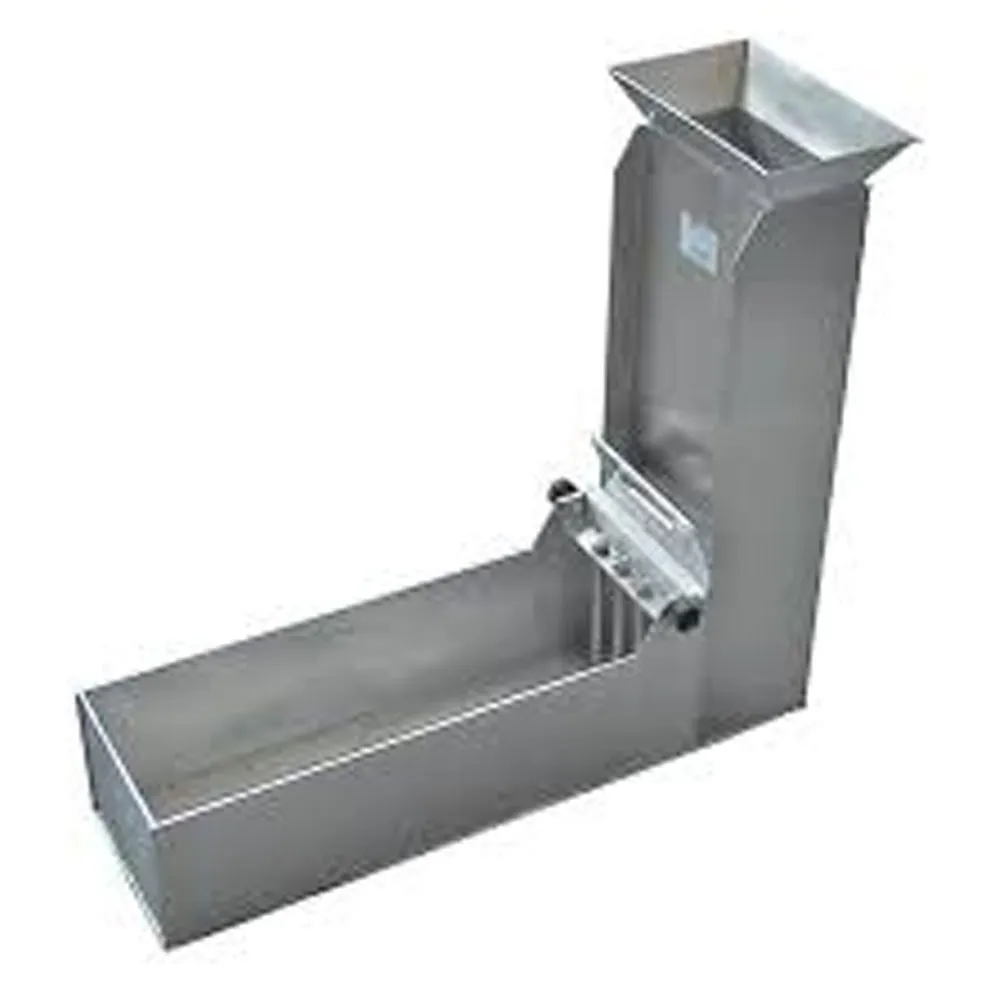

        The L-Shape Box Test Apparatus (also known as the L-Box Test) is designed to assess the passing and confined flow ability of Self-Compacting Concrete (SCC).
        This test determines how well concrete can flow through tight spaces and reinforcement without segregation — a crucial property for quality SCC mix design and civil construction projects.

        The RTC Dhaka L-Shape Box is made from heavy-duty mild steel or stainless steel, ensuring accurate, repeatable results and long service life in civil laboratories.


        ⚙️ Key Features

        • High-quality fabrication using mild or stainless steel.

        • Smooth internal finish to ensure uniform concrete flow.

        • Transparent acrylic front wall (optional) for visual observation.

        • Reinforcement bars (12 mm dia at 50 mm c/c) for obstruction simulation.

        • Easy-to-operate sliding gate for controlled concrete release.

        • Anti-corrosive powder-coated surface.

        • Detachable parts for easy cleaning and maintenance.


        📏 Technical Specifications

        Parameter Specification
        Material Mild Steel / Stainless Steel
        Internal Dimensions L-section: 200 mm × 200 mm (horizontal) × 400 mm (vertical)
        Bar Reinforcement 12 mm dia @ 50 mm c/c
        Sliding Gate Stainless Steel with handle
        Base Plate Rigid, flat steel base
        Surface Finish Powder-coated / painted anti-corrosion
        Standard Reference EFNARC, ASTM C1611, EN 12350-10
        Brand RTC Dhaka
        Country of Origin Bangladesh / Imported

        🧰 Supplied Accessories

        • 1 × L-Shape Box Main Assembly

        • 1 × Sliding Gate Assembly

        • 1 × Reinforcement Bar Grid

        • 1 × Base Support Plate

        • 1 × Instruction Manual


        🧪 Purpose of the L-Shape Box Test

        The L-Box test is used to measure the passing ability and flow characteristics of Self-Compacting Concrete (SCC) through obstacles.
        It simulates real-world construction conditions where concrete must flow around reinforcement bars without losing its homogeneity.


        🧱 Applications

        • Concrete technology laboratories

        • Civil engineering departments

        • Quality control for ready-mix concrete

        • SCC mix design validation

        • Construction site testing


        🧾 Advantages

        • Durable and corrosion-resistant build

        • Easy setup and repeatable testing

        • Provides accurate flow performance evaluation

        • Complies with international SCC testing standards

        • Economical and ideal for educational & industrial labs
