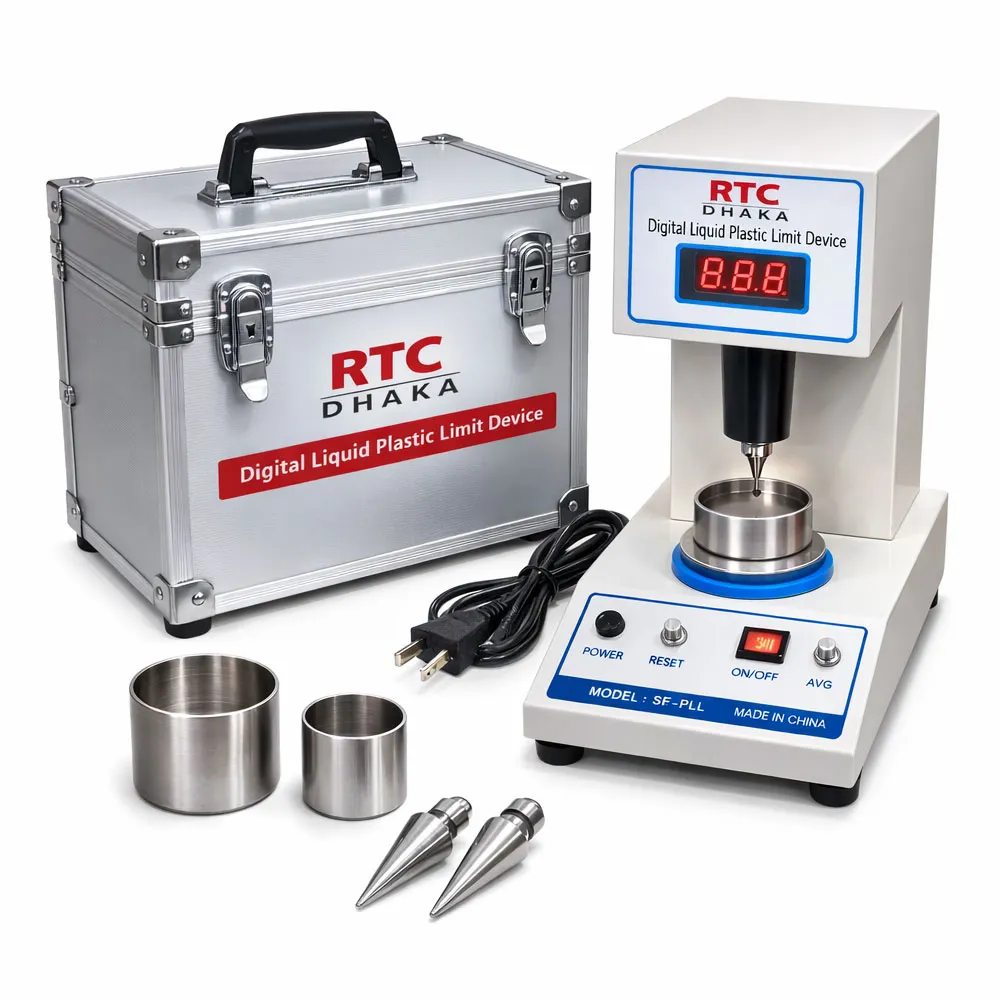

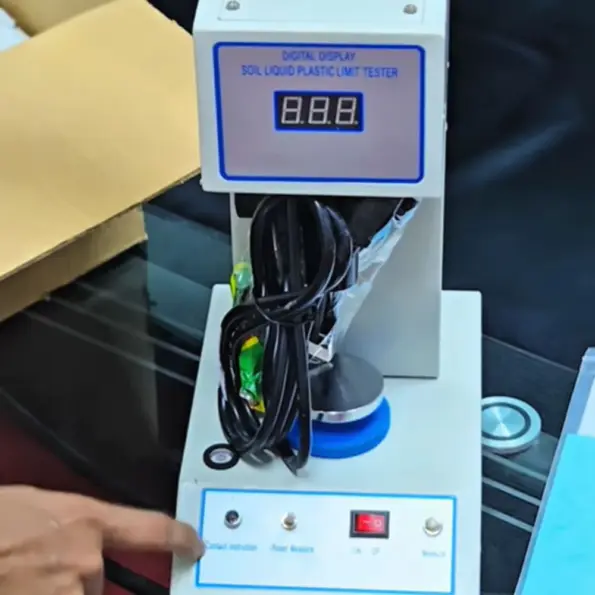

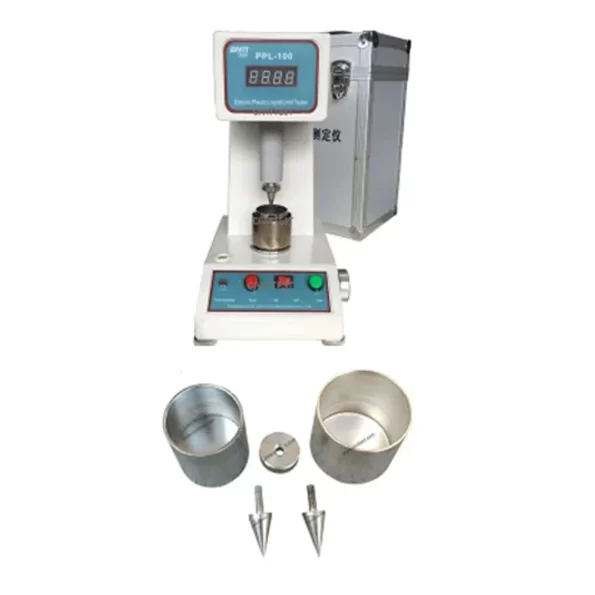

Digital Liquid Plastic Limit United Device price in Bangladesh
Product Name :Â Soil Cone Penetrometer Plastic Liquid Limit
- Model NO. PLL-76/100
- Division : 0.1m
- Standard:Â BS. NF
- Display: Digital Display
- Certification : ISO 9001
- Transport Package : 9mm and 15mm Plywood Package
- Specification : 76L limit tester
- Trademark :Â civittest
- Origin : Zhejiang-China
Original price was: ৳ 95,000.৳ 75,000Current price is: ৳ 75,000.
| SL No. | Description | Specification |
|---|---|---|
| 1 | Product Name | Digital Liquid Plastic Limit Device (Soil Cone Penetrometer) |
| 2 | Cone Angle | 30° ± 0.2° |
| 3 | Cone Weight | 76 g ± 0.2 g, 100 g ± 0.2 g |
| 4 | Measure Penetration Depth of Cone | 0 – 22 mm |
| 5 | Precision | 0.1 mm |
| 6 | Cone Damage Inspection | 0.3 mm |
| 7 | Electromagnetic Suction | > 100 g |
| 8 | Display | Digital Display |
| 9 | Weight | 7.5 kg |
| 10 | Dimension | 300 × 230 × 440 mm |
| 11 | Application | Determination of Liquid Limit and Plastic Limit of Soil |
| 12 | Standard | BS / ASTM Standard |
| 13 | Brand | SF |
| 14 | Model | SF-PLL |
| 15 | Manufacturer Country | China |
| 16 | Made in | China |
Features:
Excellent performance, reliable data, and high accuracy, clear direct readings, and convenient operation, high efficiency.
Specification:
1. Max. measuring range:22mm
2. Resolution:0.1mm
3. Nonlinear error: Superior than 2%
4. Contact sensitivity: >10M
5. Cone weight:76g /-0.1g 100g /-0.1g
6. Cone angle:30° /-2°
7. Measuring Time: 5 Second
8. Working voltage: AC220V±10%
9. Continuous working period: 8 hours
Application The equipment is used to determine liquid and plastic limits of soil, thus to provide reliable data to classify soil types, calculate natural consistency and plasticity index. Digital display technology is adopted for this machine and automatical measurement can be performed. Standard It accords with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods. EN10002-1, ISO 6892, ASTM E8, ASTM C39, ASTM F606, SAE J429, CE Compliant.
Accessories
All Related Accessoriesb
this is one kind of digital civil laboratory and soil laboratory product. basically our country in Bangladesh this product use soil testing. this liquid limit testing very easily to testing soil, and use soil laboratory product. Trading Corporation Rahim Trading Corporation is the best importer and supplier all over the Bangladesh. almost we had supply this product in many soil laboratory as Bangladesh engineering university BUET, More than 10 years we had imports this product and supply Bangladesh Government and non government soil laboratory. this product technical specification is very clear and 99.99% result is accuracy. equipment our Civil and survey and soil testing equipment is very popular and Trusty business in totally Bangladesh. Bangladeshi more population company all time task on RTC then orde are more and more laboratory product.
RTC is the very trusted company in Bangladeshi Government and non government office. during the Bangladeshi soil testing many company that our digital liquid Limited.
our stock two type liquid Limited test:
- analogue liquid limit test
- digital liquid limit test
- our digital liquid Limited from china
- analogue liquid limit test from china, India and we making local manufacturing.
