Bitumen Ductility Test Apparatus
ductility test apparatus,
Ductility Test Apparatus, Civil equipment
- Manufacturing country: Bangladesh
- Won products at RTC
Original price was: ৳ 180,000.৳ 175,000Current price is: ৳ 175,000.

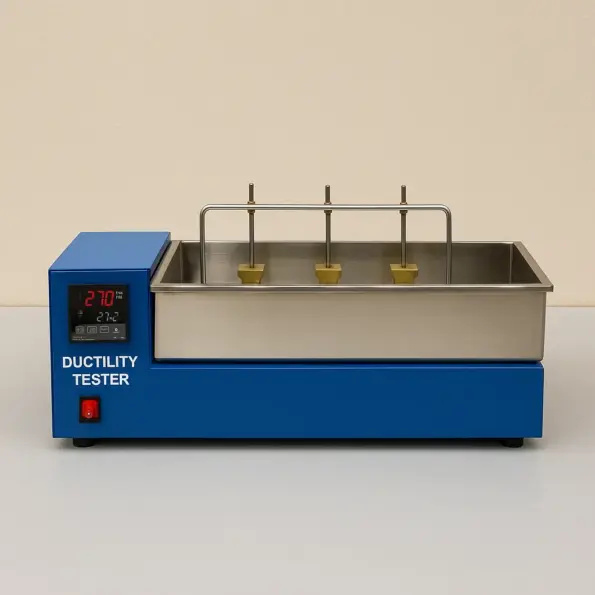

🛢️ Bitumen Ductility Test Apparatus
Model: RTC-DTA-01
Brand: RTC Dhaka
🧪 Product Overview
The Ductility Test Apparatus is used to measure the ductility of bituminous materials — that is, the distance in centimeters to which a standard bitumen briquette can be stretched before breaking under controlled conditions.
This test helps determine the adhesive and elastic properties of bitumen and asphalt, ensuring the durability and flexibility of road pavement materials.
The RTC Dhaka Ductility Testing Machine is built to meet ASTM D113, IS 1208, and other international standards, making it ideal for civil engineering and highway material testing laboratories.
⚙️ Key Features
-
✅ Precision temperature control via thermostatic water bath (27°C ± 0.5°C).
-
✅ Smooth and uniform speed movement (50 mm/min).
-
✅ High-quality stainless steel trough with smooth finish.
-
✅ Three or six briquette capacity (optional).
-
✅ Corrosion-resistant, long-lasting construction.
-
✅ Digital temperature indicator and controller.
-
✅ Meets ASTM D113 and IS 1208 standards.
📏 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RTC-DTA-01 |
| Test Method | Ductility Test for Bitumen |
| Speed | 50 mm/min (constant) |
| Temperature Control | Thermostatically controlled (27°C ± 0.5°C) |
| Bath Material | Stainless Steel / Brass |
| Briquette Capacity | 3 or 6 Moulds (as per requirement) |
| Power Supply | 220V AC, 50 Hz |
| Water Bath | Electrically heated with recirculating system |
| Standards | ASTM D113 / IS:1208 |
| Brand | RTC Dhaka |
| Country of Origin | Bangladesh / Imported |
🧰 Supplied Accessories
-
1 × Ductility Testing Machine
-
3 × Standard Moulds (Briquette Type)
-
1 × Water Bath Assembly
-
1 × Temperature Controller
-
1 × Power Cord and Operating Manual
🧪 Purpose of Test
The Bitumen Ductility Test measures the distance (in cm) that a standard bitumen sample can stretch before breaking.
This indicates the elastic and cohesive properties of the binder — key characteristics that determine the flexibility and crack resistance of pavement materials.
🏗️ Applications
-
Bitumen & Asphalt Quality Testing
-
Road Construction Laboratories
-
Pavement Research & Development
-
Civil Engineering Quality Control
-
Educational & Research Institutions
💡 Advantages
-
Accurate and repeatable results
-
Stable temperature control for precision testing
-
Easy to operate and maintain
-
Long service life with durable components
-
Conforms to ASTM and IS standards
📞 Order Now
Rahim Trading Corporation (RTC Dhaka)
📍 Swantex Bhaban, 9/I Motijheel C/A, Dhaka – 1000
📱 +8801831-016720
📧 rtcdhaka2013@gmail.com
🌐 www.rtcdhaka.com
