Digital Concrete Water Impermeability Apparatus, Digital Concrete Water Impermeability Apparatus WI-D185
৳ 550,000 ৳ 485,000

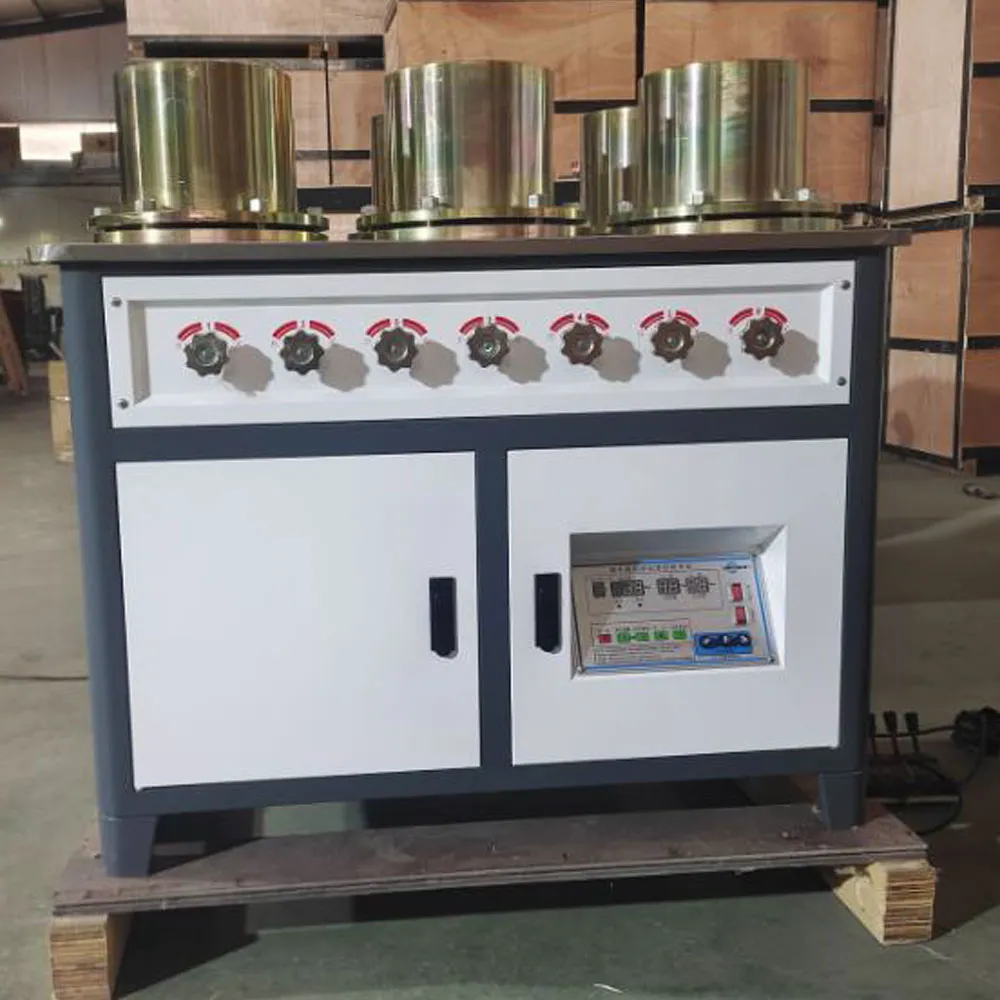

Digital Concrete Water Impermeability Apparatus
- Model: WI-D185
- Brand: Citivest
- Manufacturer Country: China
Digital Concrete Water Impermeability Apparatus, Digital Concrete Water Impermeability Apparatus WI-D185
৳ 550,000৳ 485,000Request a Call Back
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.
Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: contact@mydomain.com
Phone: +1 (23) 456 789 - Ask a Question
Digital Concrete Water Impermeability Apparatus, Digital Concrete Water Impermeability Apparatus WI-D185
৳ 550,000৳ 485,000Ask a Question
I. Use range: This apparatus is used for testing the impermeability performance of concrete and
determining the impermeability grade. It can also be used for measuring the permeability.
and quality inspection of building materials, II. Specifications, 1. Maximum working pressure: 4Mpa
2. Working mode: Automatic constant pressure and pressure increase
3. Number of test pieces that can be tested at once: 6. 12
4. Geometric dimensions of the trial mold (also known as the main mold), diameter of the
upper opening of the mold cavity: Φ 174.8mm, lower mouth diameter of mold cavity: Φ
185mm, height: 153mm
5. Plunger pump parameters: Flow rate: 0.16L/min
6. Electric motor: Power: 80W Power supply: 380V-50HZ
7. External dimensions: 950 × 700 × 950mm
High quality galvanized molds
III. Structure
The concrete impermeability tester is designed based on hydraulic principles, using an
electric motor to drive the water pump to apply pressure. It is connected to the pressure
vessel, control valve, trial mold seat, etc. through pipelines. The pressure is output by the
water pump into the pressure vessel, and then transported to the specimen system for
loading testing. The pipeline is equipped with an electric contact pressure gauge and an
electrical control system. By adjusting the electric contacts inside the electric contact
pressure gauge, a constant pressure test can be conducted within the specified range of
0.1~4Mpa.
High quality galvanized molds
