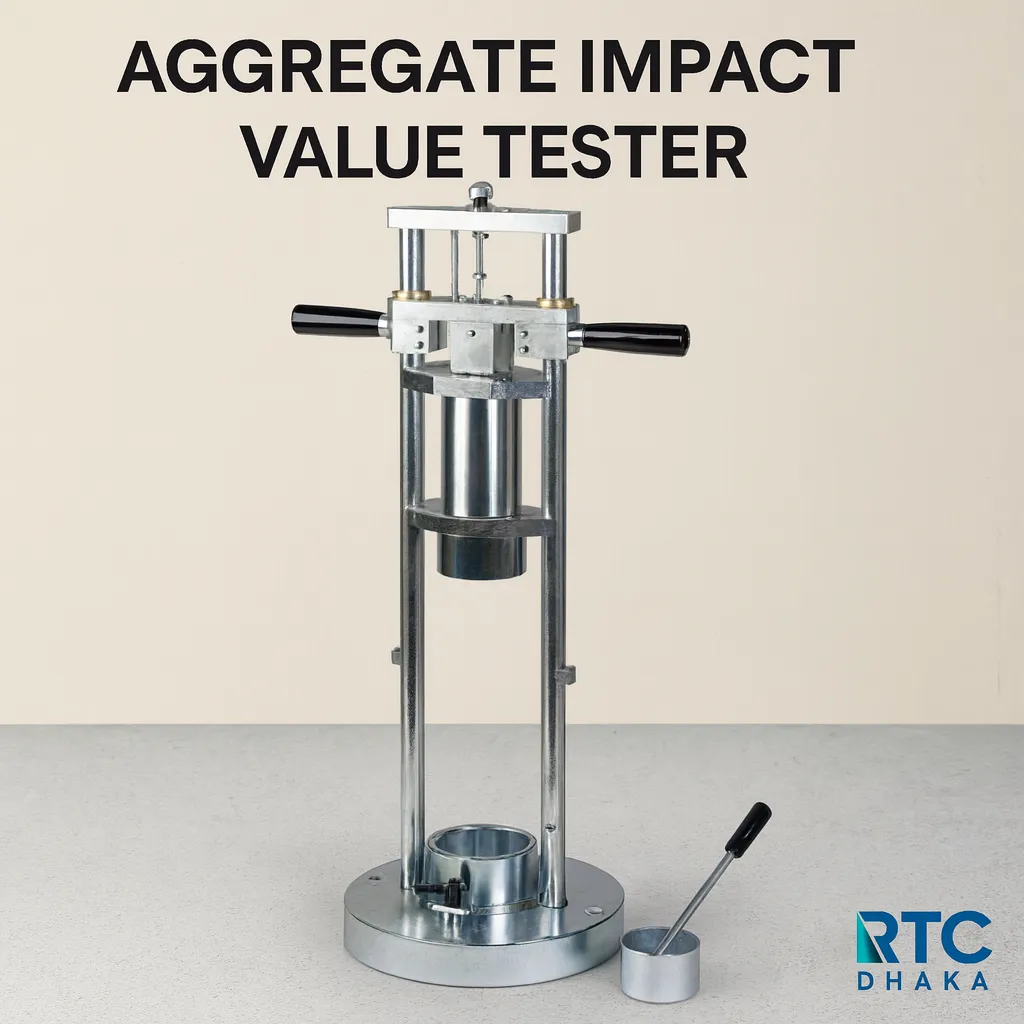

        🧱 Aggregate Impact Value Tester – RTCDHAKA

        Product Overview

        The Aggregate Impact Value Tester is a laboratory instrument used to determine the impact strength or toughness of aggregates used in concrete and road construction. It measures the resistance of aggregates to sudden impact or shock loads — an essential property in ensuring material durability and stability for civil and highway projects.

        Manufactured by RTCDHAKA, this robust testing apparatus conforms to IS: 2386 (Part IV), BS 812, and ASTM C131 standards, ensuring precise and repeatable test results for both educational and professional laboratory use.


        ⚙️ Key Features

        • Heavy-duty frame and base construction

        • Standard impact cup with tamping rod

        • Drop hammer (13.5–14 kg) with adjustable height

        • Optional digital counter for automatic blow count

        • Durable, corrosion-resistant finish

        • Designed according to ASTM, BS, and IS standards


        📊 Technical Specifications

        Parameter Specification
        Impact Cup Size 75 mm dia × 50 mm height
        Hammer Weight 13.5–14 kg
        Drop Height 380 ± 5 mm
        Material Mild Steel / Cast Iron Base
        Standards IS:2386 (Part IV), BS 812, ASTM C131
        Type Manual / Digital Model Available
        Power Supply (Digital Model) 220V AC, 50Hz

        🧩 Applications

        • Determination of aggregate toughness and impact value

        • Evaluation of aggregate suitability for road and concrete mix design

        • Used in civil engineering laboratories, highway testing centers, and quality control departments


        🏢 Why Buy from RTCDHAKA

        RTCDHAKA provides laboratory and field testing equipment built for accuracy, reliability, and long-term performance. Our Aggregate Impact Value Tester is ideal for research labs, educational institutions, and construction quality control facilities across Bangladesh.
