2000kN Digital Compression Load Cell for CTM

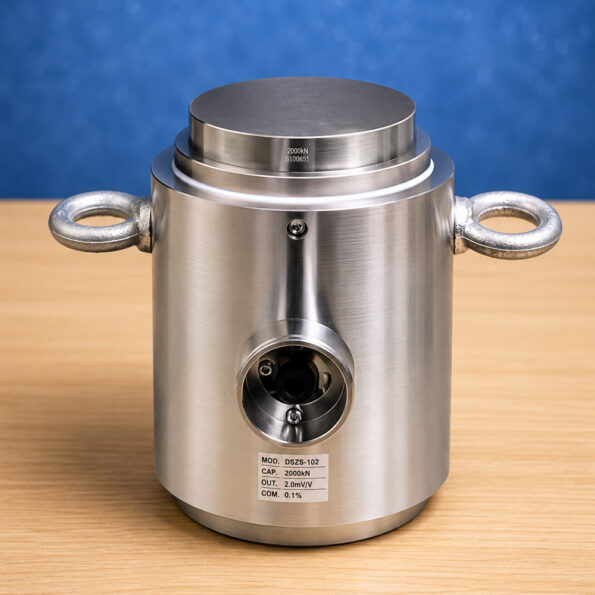

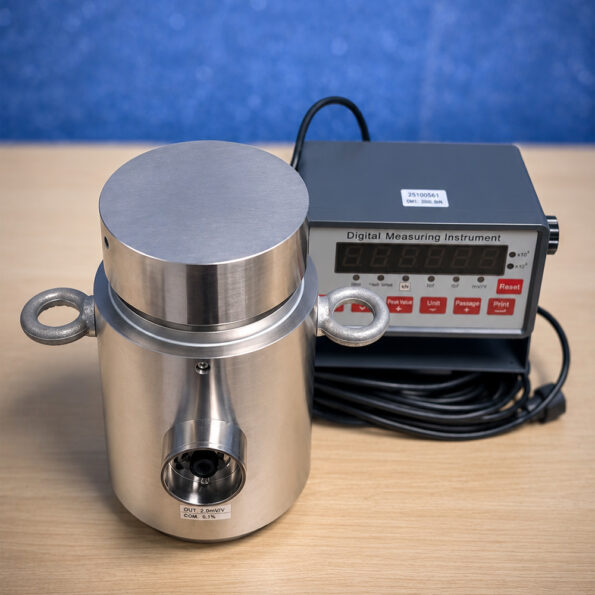

The 2000kN Compression Load Cell is a force-measuring sensor designed for compatible Compression Testing Machines (CTMs) and other compression-testing equipment. It converts an applied compressive force into an electrical signal that a compatible digital indicator or controller can process and display.

With a stated capacity of 2000kN and a nominal output of 2.0mV/V, this load cell can support compression-force measurement in suitable material-testing applications. The supplied specifications also state an accuracy of 0.1%; buyers should confirm the applicable accuracy definition and calibration conditions with the manufacturer.

This sensor may suit concrete testing laboratories, civil engineering laboratories, construction-material testing facilities, and industrial quality-control departments. However, correct installation, electrical compatibility, calibration, and proper alignment are essential for reliable measurement results.

Technical Specifications

Key Features of the 2000kN Compression Load Cell

• 2000kN Rated Capacity: Designed for compression-force measurement within its specified operating range.
• 2.0mV/V Rated Output: Provides a nominal electrical output for a compatible load-cell indicator or controller.
• Stated 0.1% Accuracy: Confirm the accuracy definition, test conditions, and calibration requirements before use.
• Stainless Steel Construction: The supplied product information identifies stainless steel as the construction material.

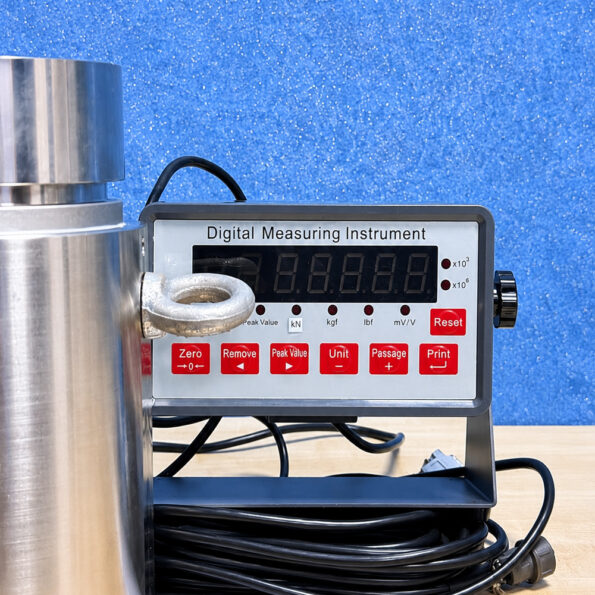

• Digital Indicator Compatibility: Requires an indicator or controller that matches the sensor’s electrical specifications.
• Laboratory Applications: Suitable for compatible material-testing and quality-control systems.
• Calibration Support: Proper calibration helps establish measurement reliability and traceability.

Applications of the Compression Load Cell

A compatible 2000kN compression load cell can support force measurement in a range of laboratory and industrial testing applications.

• Civil engineering laboratories
• Concrete testing laboratories
• Construction-material testing facilities
• Ready-mix concrete quality-control laboratories
• University and polytechnic laboratories
• Government and private testing facilities
• Industrial material-testing departments
• Research and quality-control centres

The exact application depends on the load cell’s design, installation arrangement, indicator compatibility, and the relevant testing standard.

Compatible Compression Testing Equipment

This load cell may be considered for the following equipment when the mechanical and electrical specifications match:

• Compression Testing Machine (CTM)
• Concrete Compression Testing Machine
• Digital Compression Testing Machine
• Hydraulic Compression Testing Machine
• Automatic Compression Testing Machine
• Concrete Cube Testing Machine
• Concrete Cylinder Testing Machine
• Customized compression-force testing systems

Important: A 2000kN capacity alone does not guarantee compatibility with every CTM. Before purchasing, verify the mounting dimensions, load direction, signal type, rated output, excitation voltage, connector, and indicator configuration.

How to Select the Right Load Cell

First, check the maximum force required by your testing machine. Next, confirm the load cell’s rated capacity and mechanical mounting arrangement. Then, compare its electrical output with the digital indicator or controller.

In addition, review the manufacturer’s calibration information and accuracy specification. Finally, confirm that the sensor suits the intended test method and operating environment.

Correct installation and calibration are essential. Never exceed the rated capacity or apply an off-axis load unless the manufacturer specifically permits it.

Installation and Maintenance

Install the load cell according to the manufacturer’s instructions. Ensure that the mounting surfaces are clean, stable, and correctly aligned. Connect the sensor using the specified wiring configuration and a compatible indicator.

Before testing, verify the zero reading and calibration status. Inspect the cable and connectors regularly, and protect the sensor from impact, moisture, and unintended overloads. Only qualified personnel should carry out installation, wiring changes, and calibration.

Why Choose RTC Dhaka?

Rahim Trading Corporation (RTC Dhaka) supplies civil laboratory equipment, compression testing machines, surveying instruments, and industrial products to customers in Bangladesh.

We assist laboratories, contractors, educational institutions, and quality-control teams with product information, compatibility checks, pricing enquiries, and quotations.

Explore our civil laboratory and industrial products at RTC Dhaka to find additional material-testing equipment.

For general information about materials testing standards, visit ASTM International. The applicable standard for your machine and test method must be confirmed separately.

Ordering and Compatibility Confirmation

Contact RTC Dhaka to check the current price, stock availability, and compatibility of the 2000kN Compression Load Cell with your existing CTM.

For a quotation, please provide the machine brand and model, existing load cell details, digital indicator model, connector information, and required capacity. This information helps our team assess compatibility before ordering.
